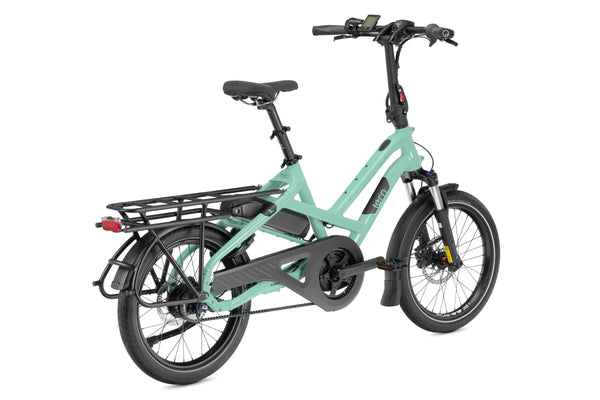

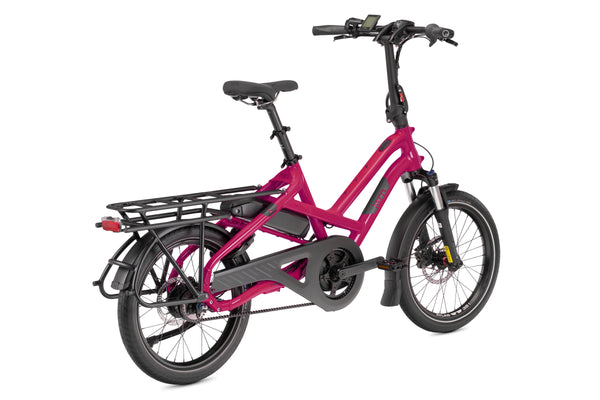

Tern HSD P5i (Gen 2)
MIGHTY BUT MINI
What makes it a P5i?

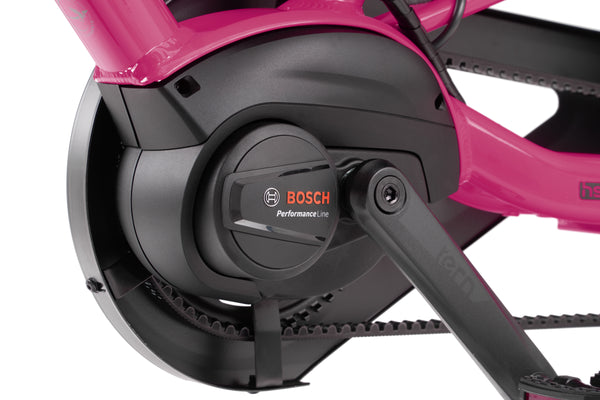

- Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
- Detachable and easy-to-understand Intuvia 100 display

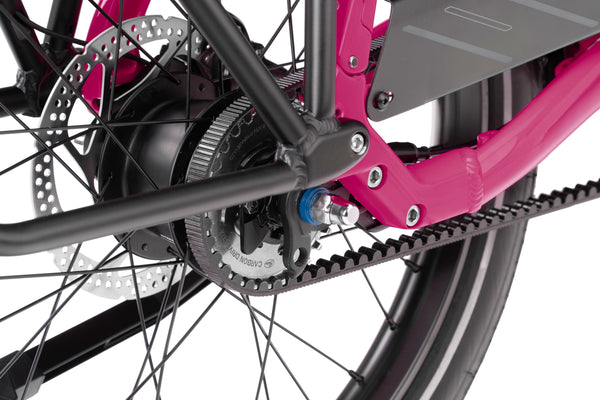

- Silent, smooth, and virtually maintenance-free Gates CDX Belt Drive

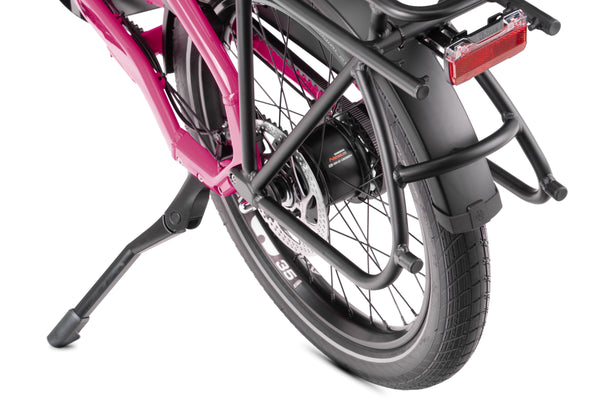

- Shimano Nexus INTER-5E internally geared hub
HSD Highlights
- Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
- Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi).
- Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo.
- Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit.
- Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight.
|
|

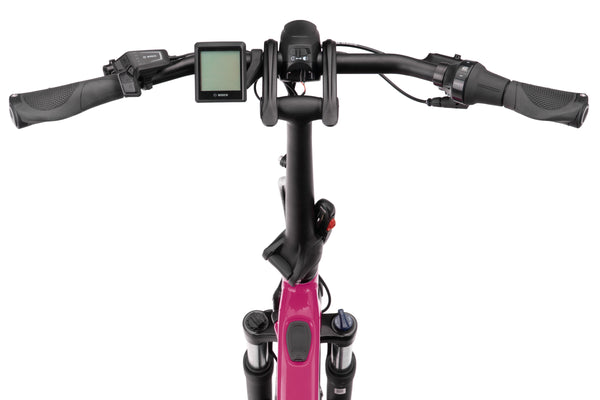

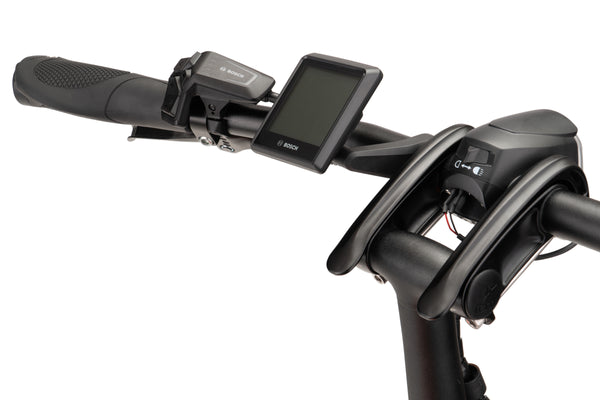

The easy-to-understand everyday companionIntuvia 100 gives you an intuitive display which you can start riding immediately. Thanks to the large font, the display is particularly clearly designed and, together with the shift recommendation, gives you more safety and comfort when riding. Operation is intuitive via the control unit - so your hands stay safely on the handlebars. |
Protect your eBikeeBikes are also popular with thieves. So whether you park for just a short time or are away for a longer period, you can stay connected to your eBike via your smartphone using the ConnectModule. Subscribe to Flow+ and get access to the eBike Alarm premium service. Combine both. As soon as you switch off your eBike, eBike Alarm will activate automatically, giving your eBike better protection against theft. If it gets stolen, a theft report can be automatically created with all relevant information about the incident and details of the eBike. |
 |
|
|

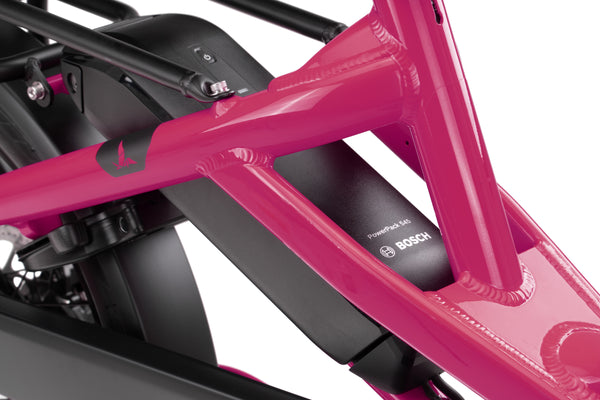

PowerPack FrameThe PowerPack Frame batteries are located on the outside of eBike frame, on the seat tube or downtube. They feature a carrying handle so that you can remove them easily and carry them conveniently. All frame batteries of the smart system use the same mount. You can simply insert another battery, provided the geometry of the eBike allows it. You can use a smaller battery to reduce the weight or a larger one to increase the range. |
Fully networked with the smart systemThe LED Remote connects your eBike with the eBike Flow app. It makes it easy to access all important ride data and is intuitive to use - your hands remain safely on the handlebars. Change riding modes, use the smart walk assistance function and operate your display or the ride screen on your smartphone. Thanks to the smart system, the LED Remote allows you to perform updates for your eBike for yourself. |
|
SPECIFICATIONS
| GENERAL INFO | WHEELS | ||
| SPEEDS: | 1 x 5 | FRONT WHEEL: | Tern Atlas H, cargo wheel |
|
WEIGHT:
|
27.9 kg (61.5 lb) | REAR WHEEL: | Tern Atlas H, cargo wheel |
|
GEAR INCHES:
|
38 - 99" (2.99 - 7.88 m) | FRONT HUB: | Novatec, Thru-axle, sealed bearings |
|

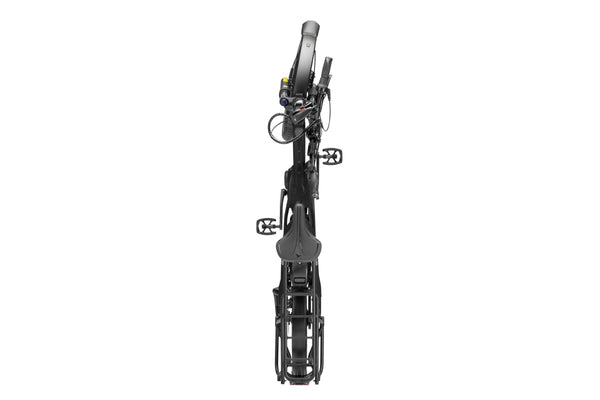

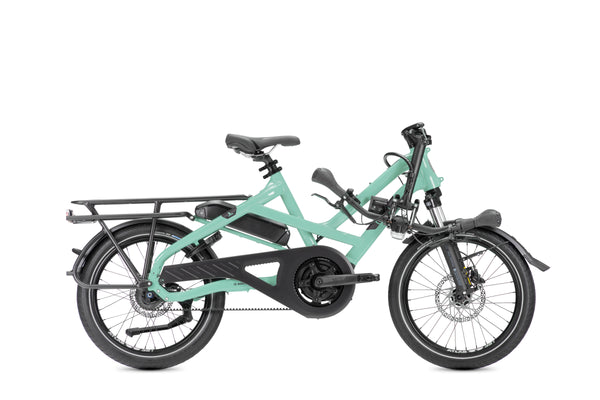

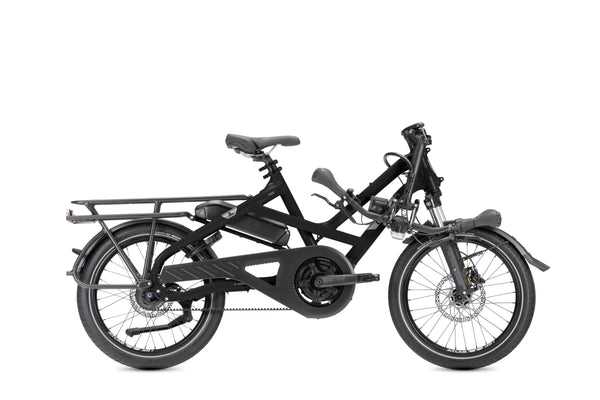

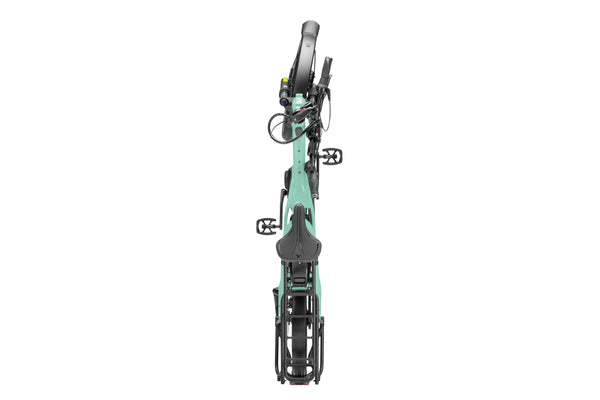

FOLDING SIZE:
|
165 × 39.5 × 87 cm (65 × 15.6 × 34.3 in) | REAR HUB: | Shimano Nexus INTER-5E |
| FOLDING TIME: | 5 seconds | SPOKES & NIPPLES: | Stainless steel |
| FRAME SIZES: | One Size | RIMS: | Tern Atlas H, wide 35 mm |
| DISTANCE: SEATPOST TO HANDLEBAR: | 54.5 - 62.5 cm (21.5 - 24.6 in) | TYRES: | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| DISTANCE: SADDLE TO PEDAL: | 70 - 102.5 cm (27.6 - 40.4 in) | TRANSMISSION | |
|
SUGGESTED RIDER HEIGHT:
|
150 - 195 cm (59.1 - 76.8 in) | SHIFTER(S): | Shimano Nexus INTER-5E |
|
MAX GROSS VEHICLE WEIGHT:
|
180 kg (396.8 lb) | CRANKSET: | Tern HSD custom, Gates CDX CNC machined beltring |
|
MAX RIDER WEIGHT:
|
120 kg (264.6 lb) | CASSETTE/FREEWHEEL: | Gates CDX, precision CNC machined cog |
|
FRAME
|
BOTTOM BRACKET: | Motor integrated | |
|
FRAME:
|
Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg | CHAIN: | Gates Carbon Drive CDX belt |
|

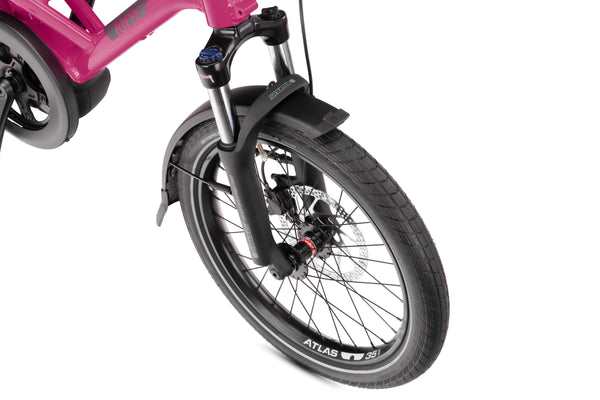

FORK:
|
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
|
PEDALS: | Urban with non-slip surface |
|
COCKPIT
|
|
SHIFTER & CABLE HOUSING: | Jagwire LEX-SL, slick treatment, alloy ferrules |
|
COCKPIT:
|
HANDLEPOST:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
|
E-SYSTEM | |
|
STEM:
|
Tern Andros, adjustable, forged construction, patented technology | MOTOR: | Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed |
|
HEADSET:
|
Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated | BATTERY: | Bosch PowerPack 545 |
|
HANDLEBAR:
|
Tern Sweep, 6061-AL, Tern Andros adapted | DISPLAY: | Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock |
|
SADDLE:
|
Tern Upright by Velo | LOCK & ALARM: | Optional |
|

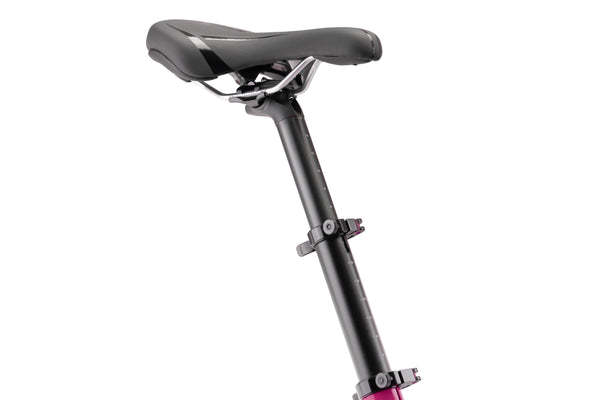

SEATPOST:
|
Tern Telescope, 34.9/30.9 mm, 2014-AL | RANGE: | 545 Wh: 51-121 km (32-76 mi) |
|
SEATPOST CLAMP:
|
Tern Collar | CHARGER: | 220V, 4A (EU); 100-240V, 4A (US) |
|
BRAKES
|
|||
|

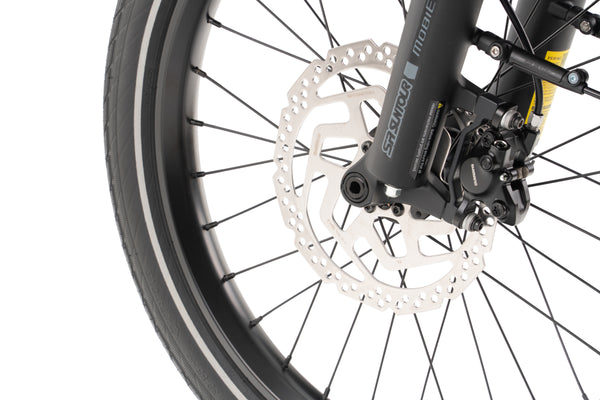

FRONT BRAKE:
|
Shimano, hydraulic disc, 180 mm rotor | BELLS & WHISTLES | |
|
REAR BRAKE:
|
Shimano, hydraulic disc, 160 mm rotor | BELL: | Pitch Plus, brass |
|
BRAKE LEVERS:
|

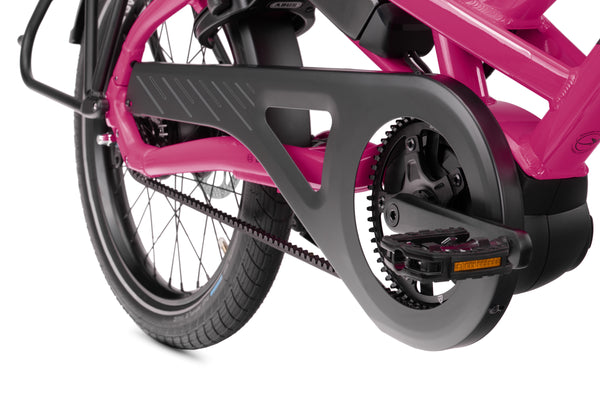

Shimano, hydraulic disc | CHAINGUARD: | Tern Custom, full chain cover |
|
BRAKE CABLE & HOUSING:
|
Shimano, hydraulic disc | KICKSTAND: | Ursus, rear mount |
|
|

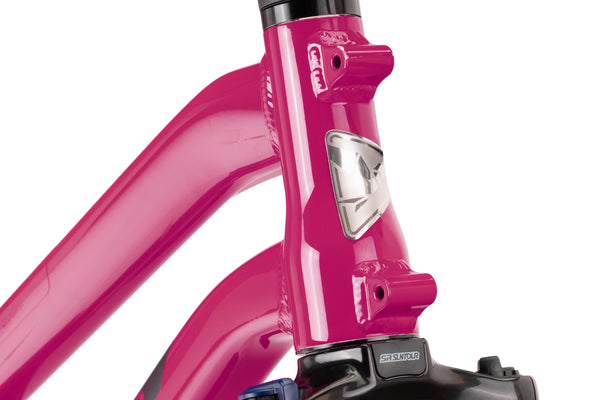

LUGGAGE SOCKET: | Combo Mount | |
|
|

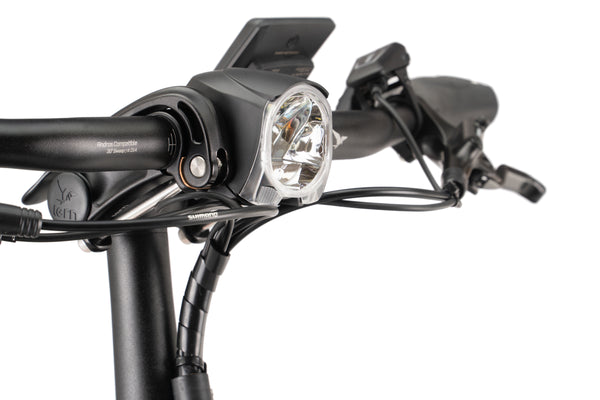

FRONT LIGHT: | Tern Valo Direct, 190 lumens | |
|
|
REAR LIGHT: | Herrmans H-Trace, for eBike | |
|
|
FENDERS: | SKS, stainless hardware | |
|
|

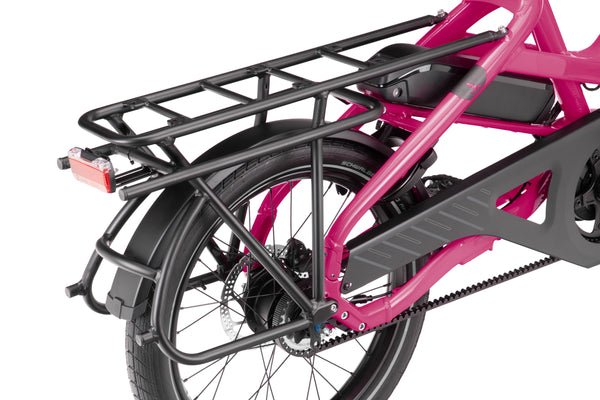

RACK(S): | Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity | |
|
|
FRAME LOCK: | ABUS, keyed-alike with Bosch battery |
