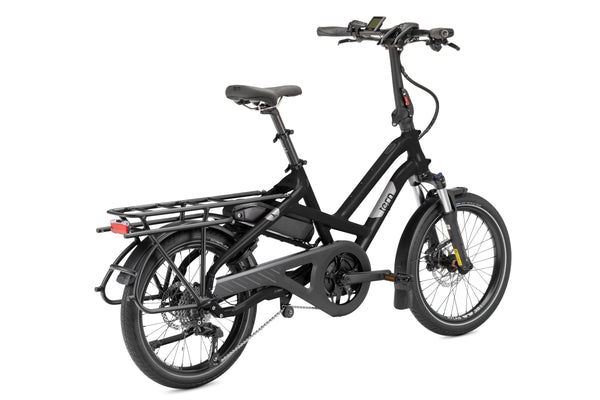

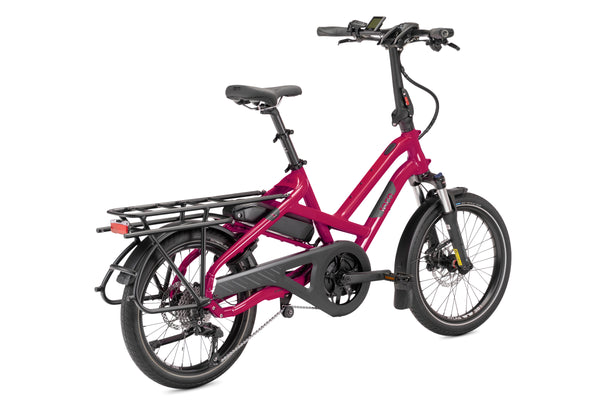

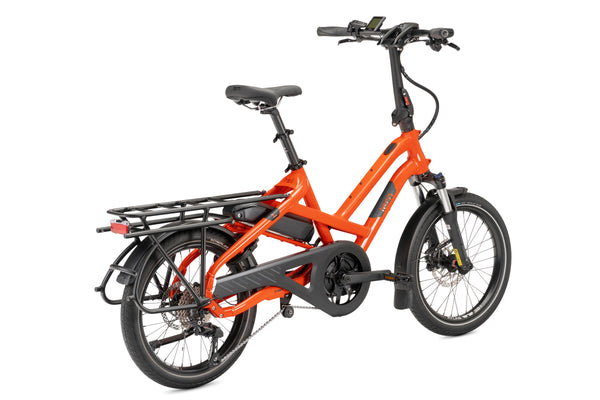

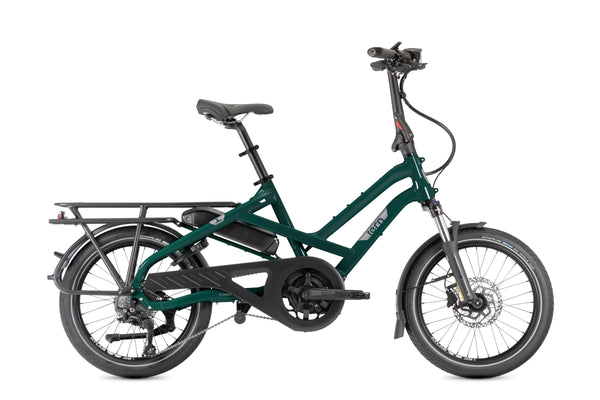

Tern HSD P10 (Gen 2)

Regular price £4,100.00

Unit price per

Colour:
Bosch eBike System:
Battery:

30 Days Free insurance provided by Sundays with the purchase of any E-Bike + 20% discount when taking out a paid insurance policy through Torque Electric x Sundays

MIGHTY BUT MINI

What makes it a P10?

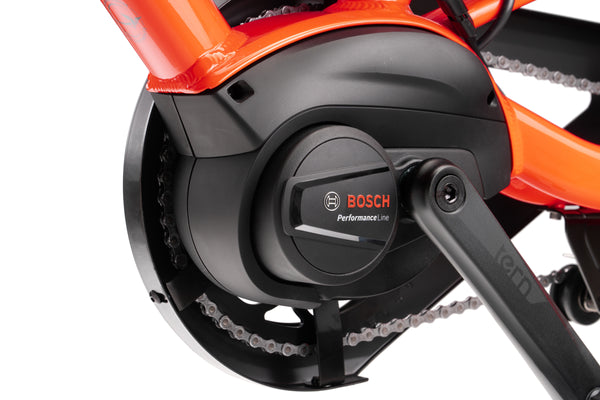

  • Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
  • Detachable and easy-to-understand Intuvia 100 display
  • 1x10-speed Shimano Deore groupset with trigger shifter

HSD Highlights

  • Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
  • Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
  • Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
  • Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
  • Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight

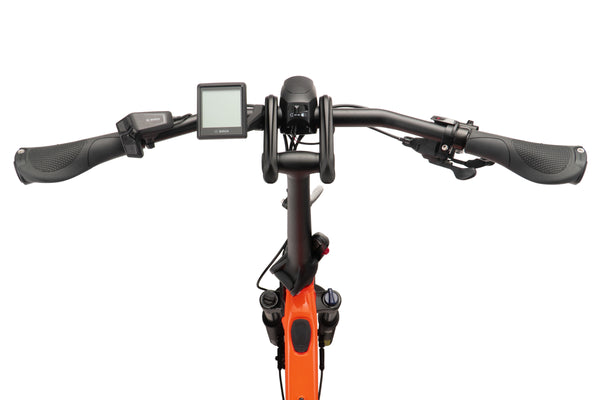

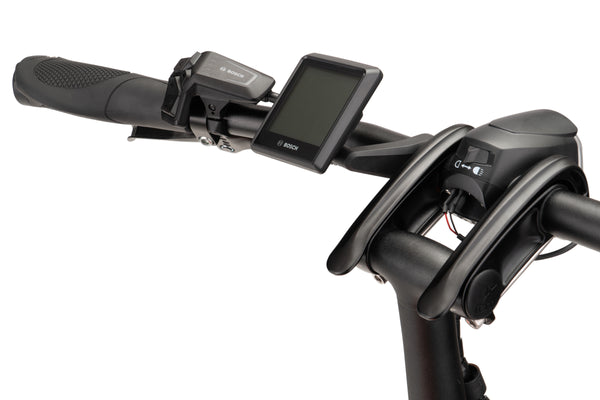

The easy-to-understand everyday companion

Intuvia 100 gives you an intuitive display which you can start riding immediately. Thanks to the large font, the display is particularly clearly designed and, together with the shift recommendation, gives you more safety and comfort when riding. Operation is intuitive via the control unit - so your hands stay safely on the handlebars.

Protect your eBike

eBikes are also popular with thieves. So whether you park for just a short time or are away for a longer period, you can stay connected to your eBike via your smartphone using the ConnectModule.

Subscribe to Flow+ and get access to the eBike Alarm premium service. Combine both. As soon as you switch off your eBike, eBike Alarm will activate automatically, giving your eBike better protection against theft.

If it gets stolen, a theft report can be automatically created with all relevant information about the incident and details of the eBike.

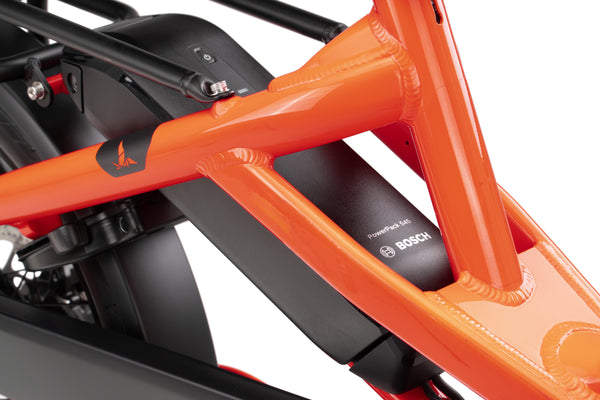

PowerPack Frame

The PowerPack Frame batteries are located on the outside of eBike frame, on the seat tube or downtube. They feature a carrying handle so that you can remove them easily and carry them conveniently.

All frame batteries of the smart system use the same mount. You can simply insert another battery, provided the geometry of the eBike allows it. You can use a smaller battery to reduce the weight or a larger one to increase the range.

Fully networked with the smart system

The LED Remote connects your eBike with the eBike Flow app. It makes it easy to access all important ride data and is intuitive to use - your hands remain safely on the handlebars. Change riding modes, use the smart walk assistance function and operate your display or the ride screen on your smartphone. Thanks to the smart system, the LED Remote allows you to perform updates for your eBike for yourself.



SPECIFICATIONS

GENERAL INFO
WHEELS
SPEEDS: 1 x 10 FRONT WHEEL: Tern Atlas H, cargo wheel
WEIGHT:
27.6 kg (60.8 lb) REAR WHEEL: Tern Atlas H, cargo wheel
GEAR INCHES:
30 - 97" (2.36 - 7.72 m) FRONT HUB: Novatec, Thru-axle, sealed bearings

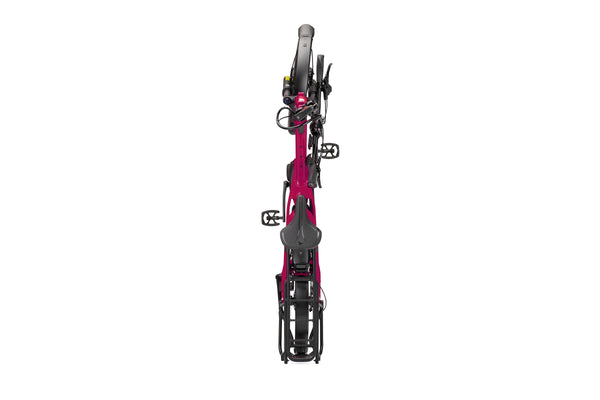

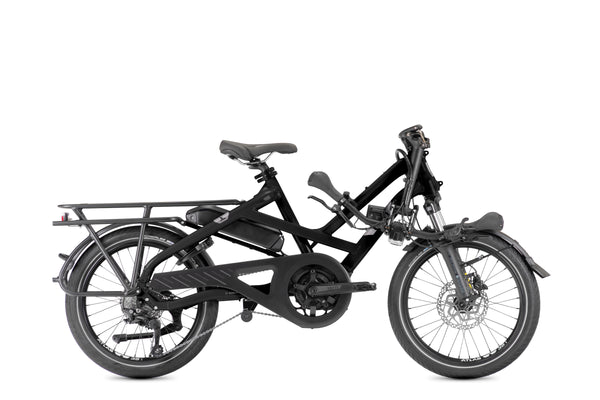

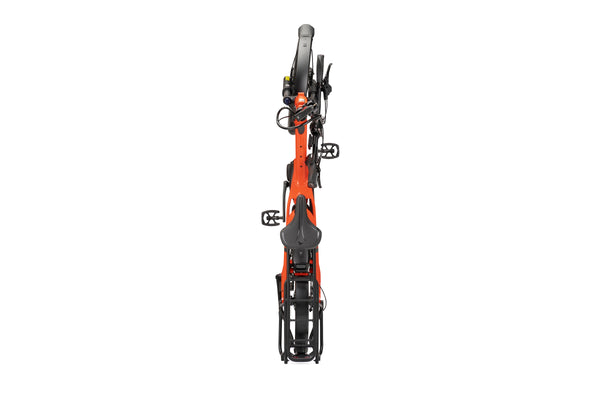

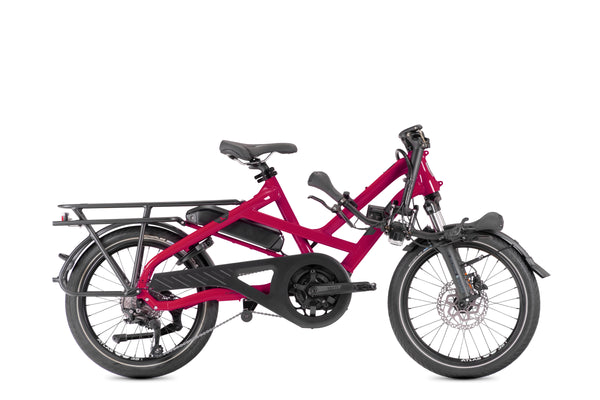

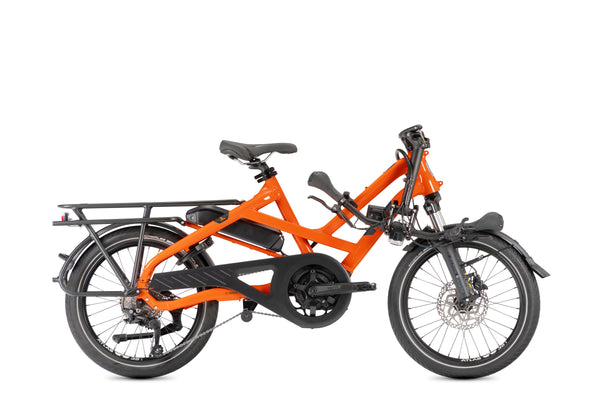

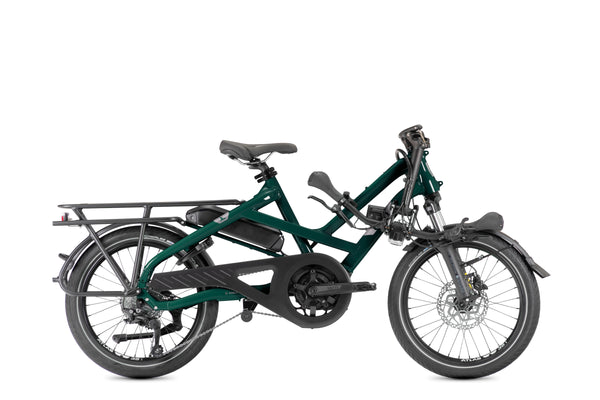

FOLDING SIZE:
165 × 39.5 × 87 cm (65 × 15.6 × 34.3 in) REAR HUB: Novatec, sealed cartridge bearing, disc
FOLDING TIME: 5 seconds SPOKES & NIPPLES: Stainless steel
FRAME SIZES: One Size RIMS: Tern Atlas H, wide 35 mm
DISTANCE: SEATPOST TO HANDLEBAR: 54.5 - 62.5 cm (21.5 - 24.6 in) TYRES: Schwalbe Big Apple, 55-406, puncture protection, Reflex
DISTANCE: SADDLE TO PEDAL: 70 - 102.5 cm (27.6 - 40.4 in) TRANSMISSION
SUGGESTED RIDER HEIGHT:
150 - 195 cm (59.1 - 76.8 in) SHIFTER(S): Shimano Deore, 1 x 10 spd, trigger
MAX GROSS VEHICLE WEIGHT:

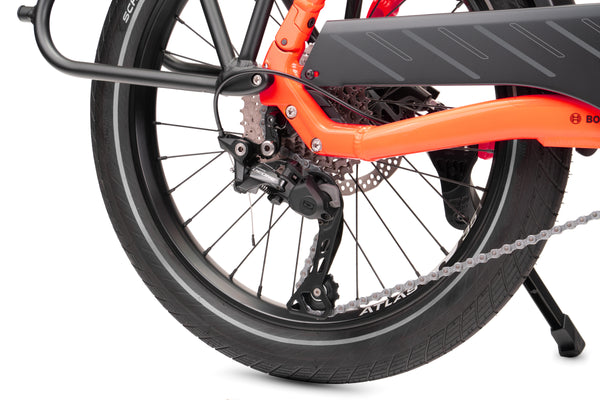

180 kg (396.8 lb) REAR DERAILLEUR: Shimano Deore Shadow+
MAX RIDER WEIGHT:
120 kg (264.6 lb) CRANKSET: Tern HSD custom
FRAME

CASSETTE/FREEWHEEL: Shimano 11-36T, 10 spd
FRAME:
Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg BOTTOM BRACKET: Motor integrated
FORK:

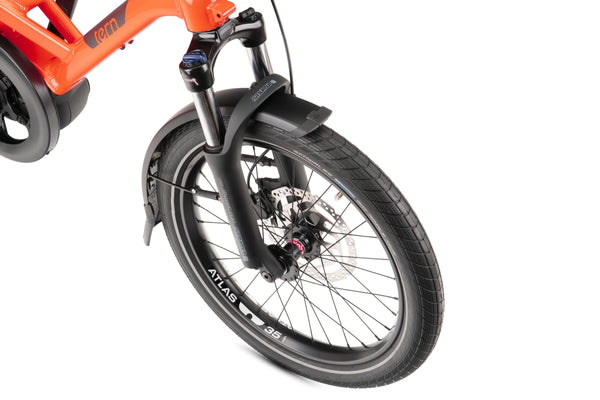

Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
CHAIN: KMC 10 spd, for eBike, EPT corrosion resistant coating
COCKPIT

PEDALS: Urban with non-slip surface
COCKPIT:
HANDLEPOST:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
SHIFTER & CABLE HOUSING: Jagwire LEX-SL, slick treatment, alloy ferrules
STEM:
Tern Andros, adjustable, forged construction, patented technology E-SYSTEM
HEADSET:
Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated MOTOR: Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed
HANDLEBAR:
Tern Sweep, 6061-AL, Tern Andros adapted BATTERY: Bosch PowerPack 545
SADDLE:
Tern Upright by Velo DISPLAY: Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
SEATPOST:

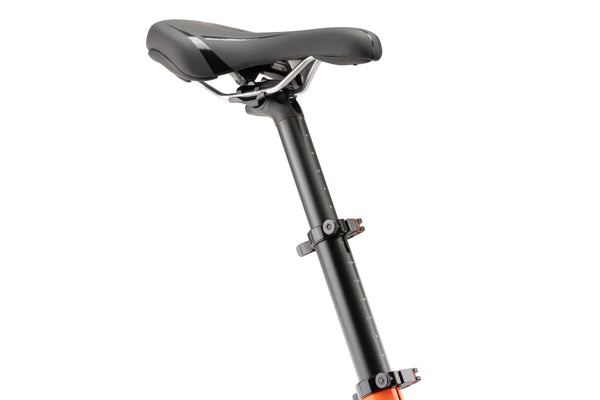

Tern Telescope, 34.9/30.9 mm, 2014-AL LOCK & ALARM: Optional
SEATPOST CLAMP:
Tern Collar RANGE: 545 Wh: 51-121 km (32-76 mi)
BRAKES

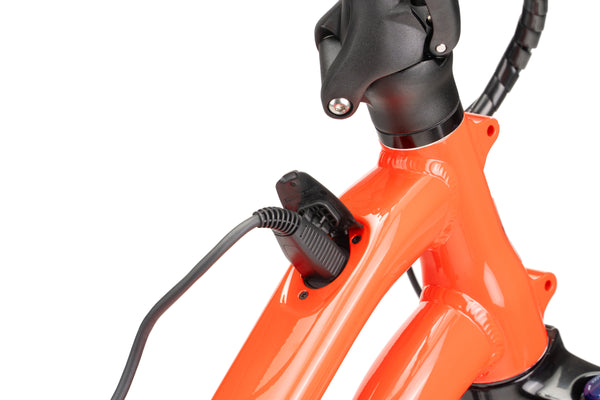

CHARGER: 220V, 4A (EU); 100-240V, 4A (US)

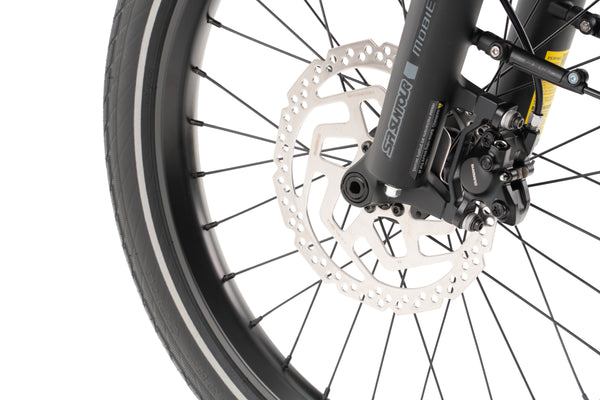

FRONT BRAKE:
Tektro, hydraulic disc, 180 mm rotor BELLS & WHISTLES
REAR BRAKE:
Tektro, hydraulic disc, 160 mm rotor BELL: Pitch Plus, brass
BRAKE LEVERS:

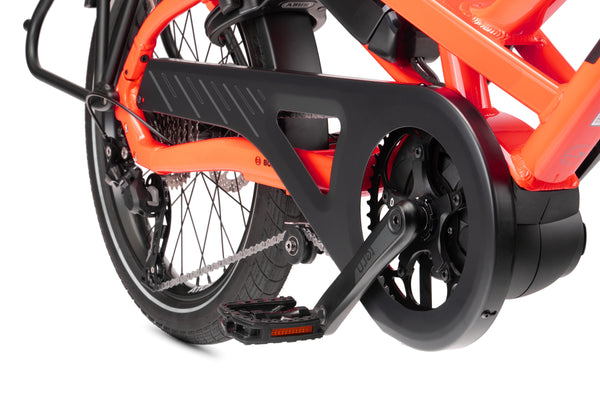

Tektro, hydraulic disc CHAINGUARD: Tern Custom, full chain cover
BRAKE CABLE & HOUSING:
Tektro, hydraulic disc KICKSTAND: Ursus, rear mount

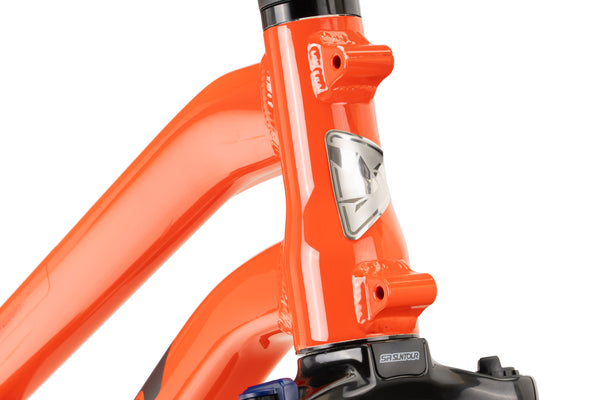

LUGGAGE SOCKET: Combo Mount

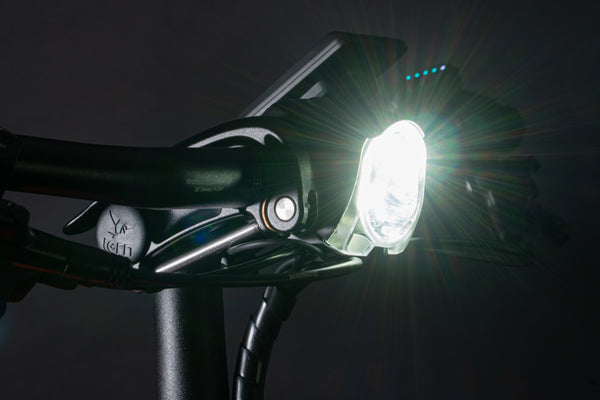

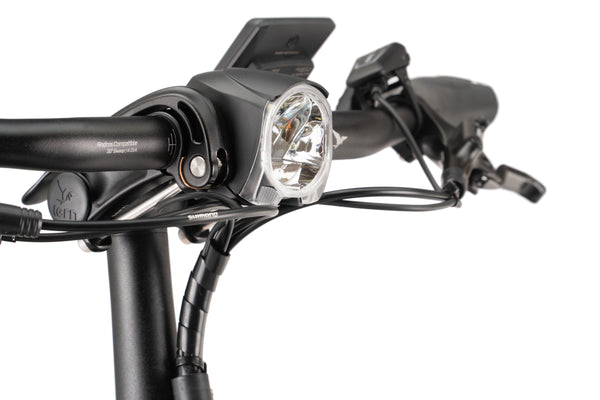

FRONT LIGHT: Tern Valo Direct, 190 lumens


REAR LIGHT: Herrmans H-Trace, for eBike


FENDERS: SKS, stainless hardware

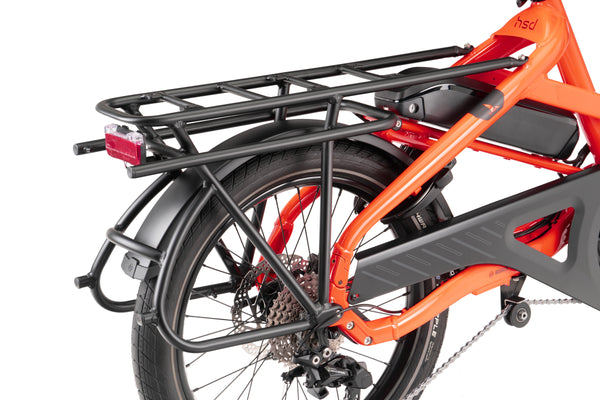

RACK(S): Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity

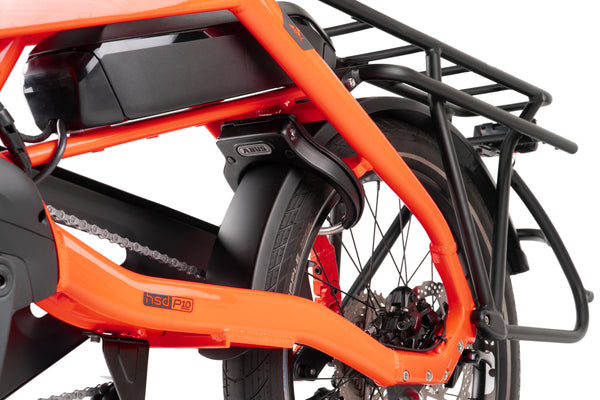

FRAME LOCK: ABUS, keyed-alike with Bosch battery
